Kit for a Bit
Kit for a Bit is a modular, transportable recreational facility designed for ease of assembly and disassembly, allowing it to be relocated and reconfigured as needed. Rather than relying on large, heavy components, the structure consists of manageable, human-scale parts that can be assembled into a repeating skeletal module. The lightweight framework is elevated off the ground by four 2” x 2” members per column, enabling beams to slide into place with minimal effort. Walls can be inserted as needed, allowing users to customize the space for different functions. The modular system is further adaptable through extendable columns, which accommodate varying topographies across different sites. This flexible approach ensures that Kit for a Bit remains highly adaptable, portable, and efficient while providing a dynamic recreational space wherever it is needed.
KIT
It was understood that some sites would contain a more aggressive topography, and in order to maintain structural integrity, the building would have to accommodate via stairs. The stair assembly, which follows the same slotting method as the rest of the building, ensures ease of construction and disassembly without requiring additional fasteners or complex connections. In the spirit of ease of assembly/ disassembly, the ground contact wood columns are ground contact pressure-treated lumber that is capable of restricting rot due to moisture found on site. Because the building is not meant to be permanent, neither are the individual members, which are to be replaced as needed.

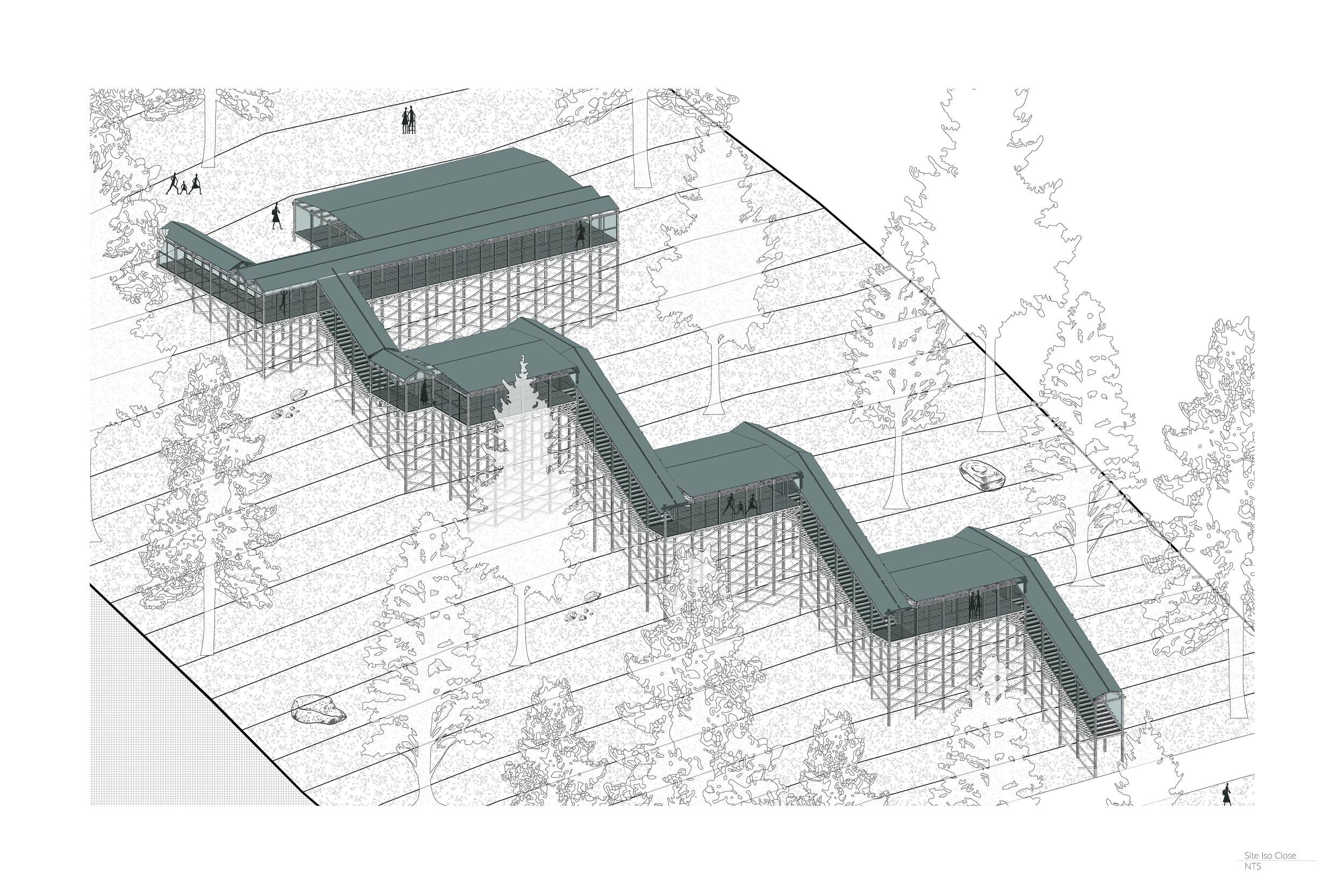

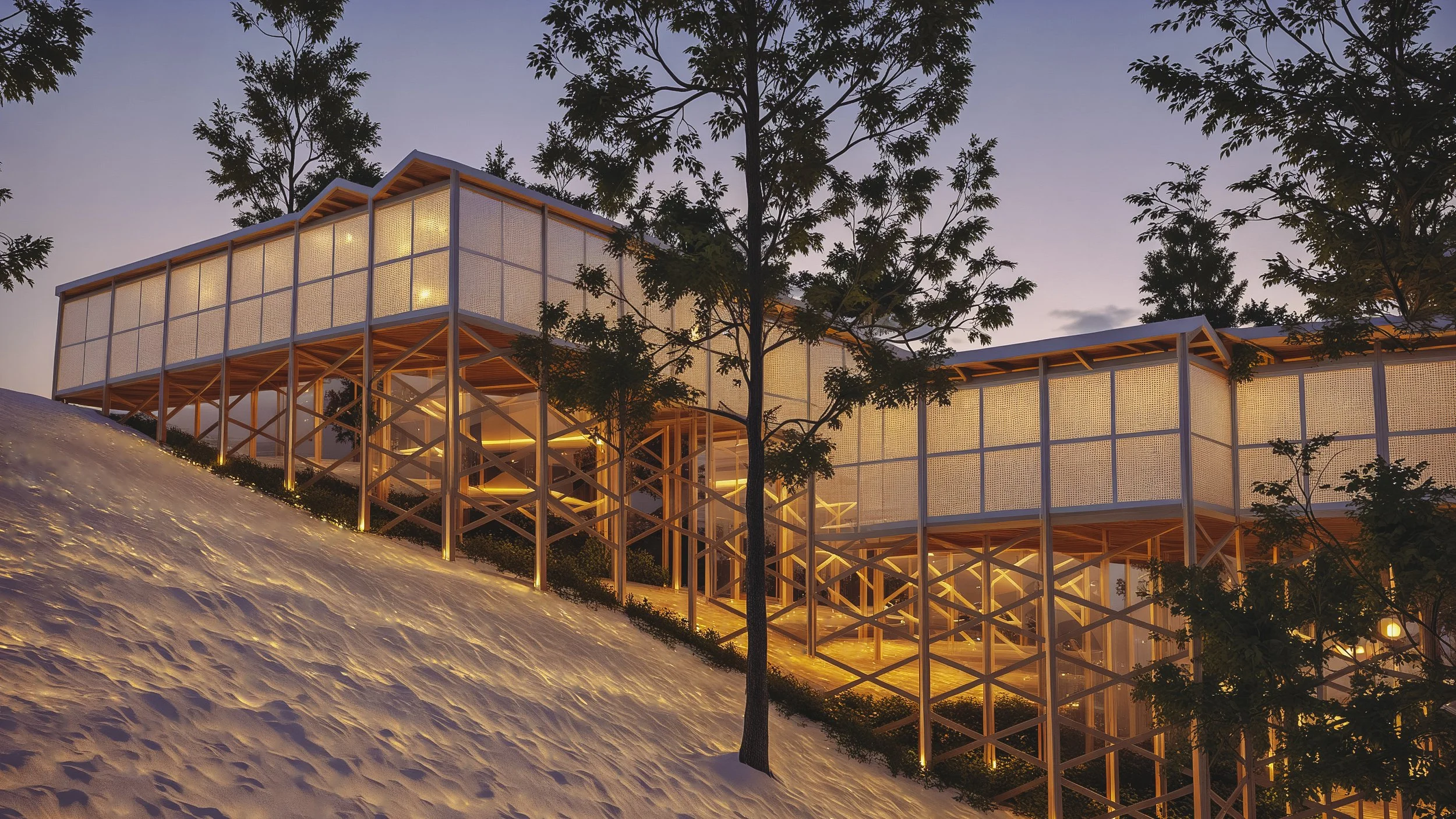

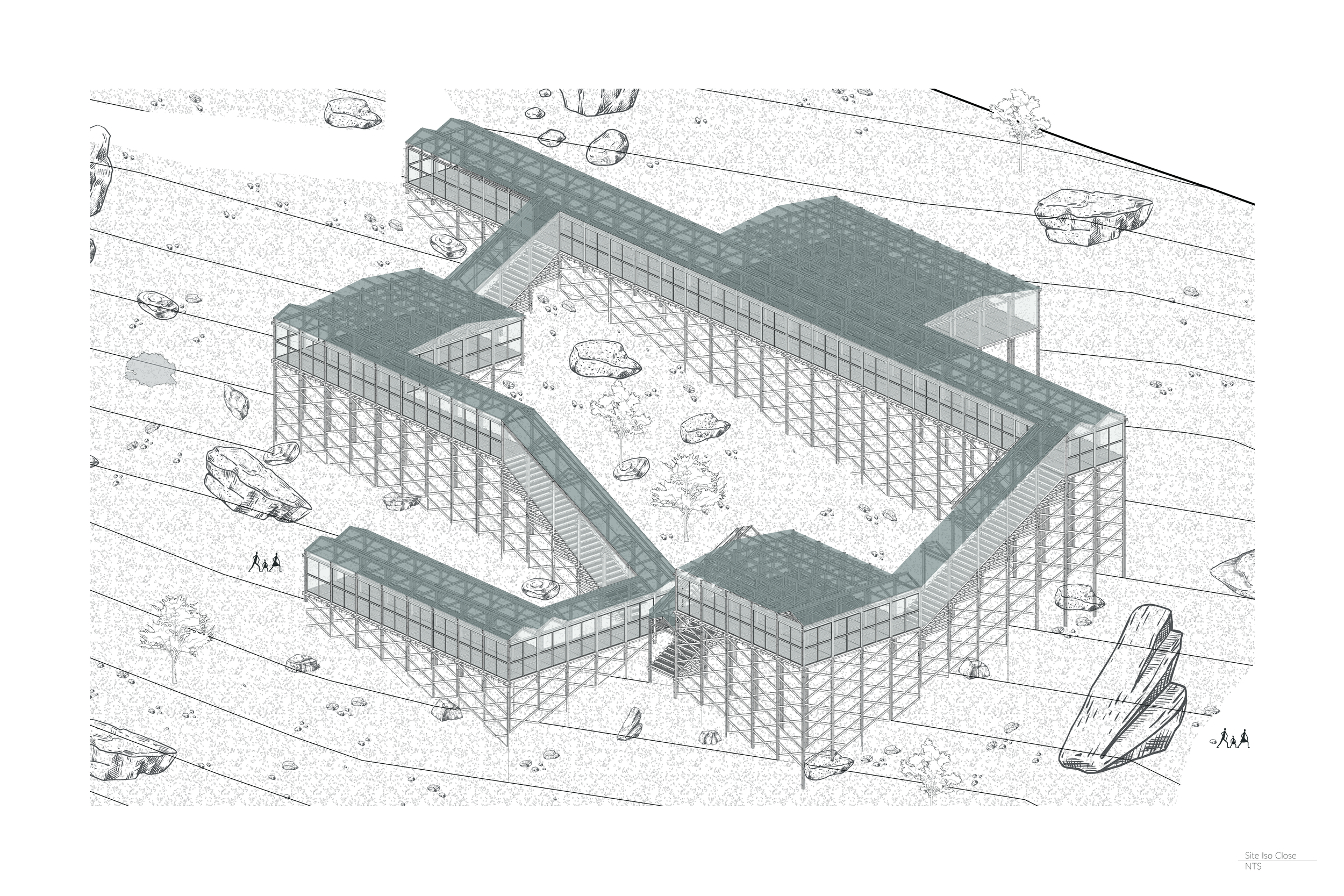

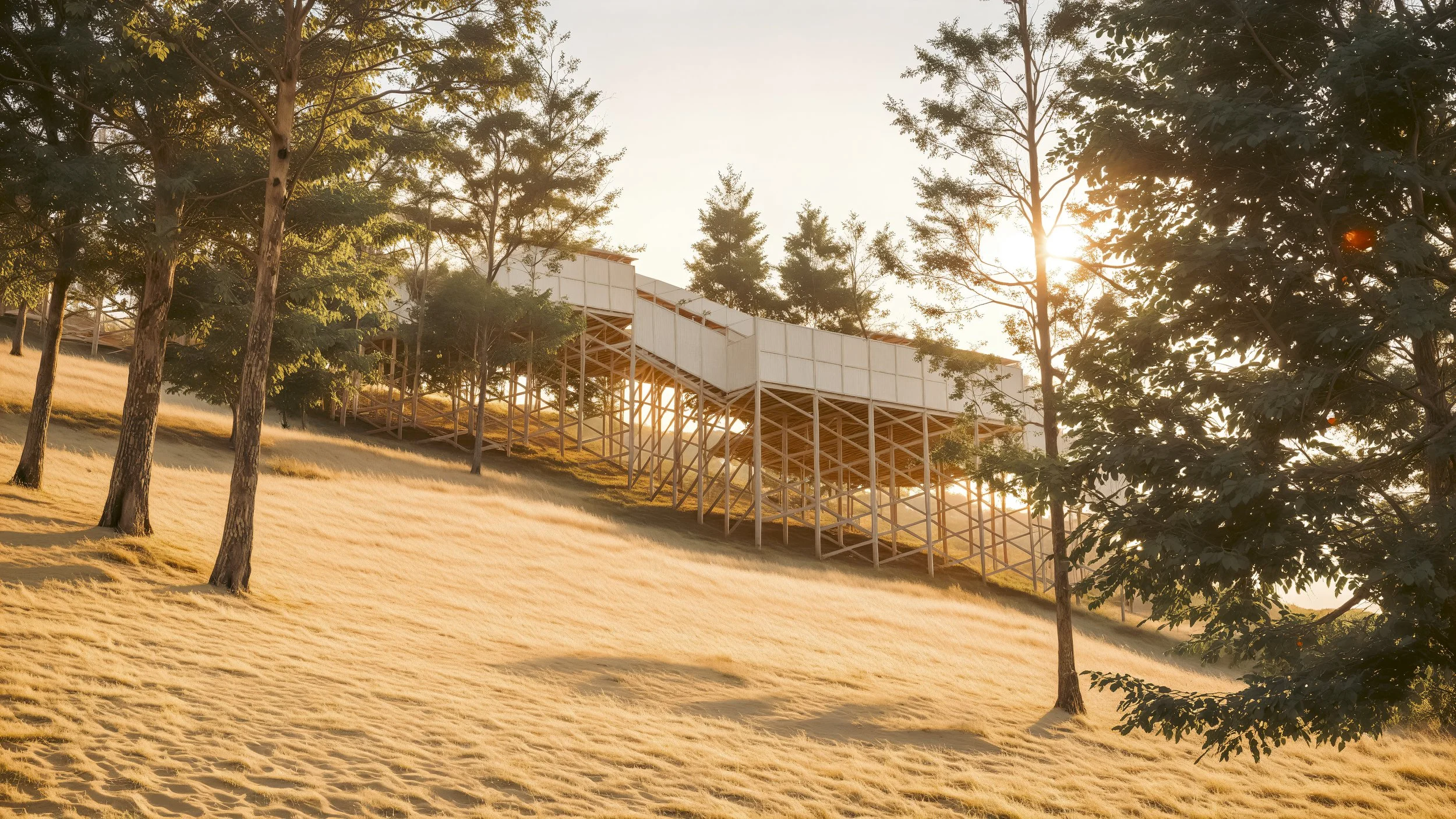

The three images showcase the Kit for a Bit module deployed across diverse landscapes, demonstrating its adaptability to different topographies and ground conditions. In rocky terrain, the extendable columns allow the structure to rise above uneven surfaces without the need for extensive ground preparation. On aggressive slopes, the system seamlessly integrates vertical circulation, ensuring stability while maintaining the modular assembly’s efficiency.

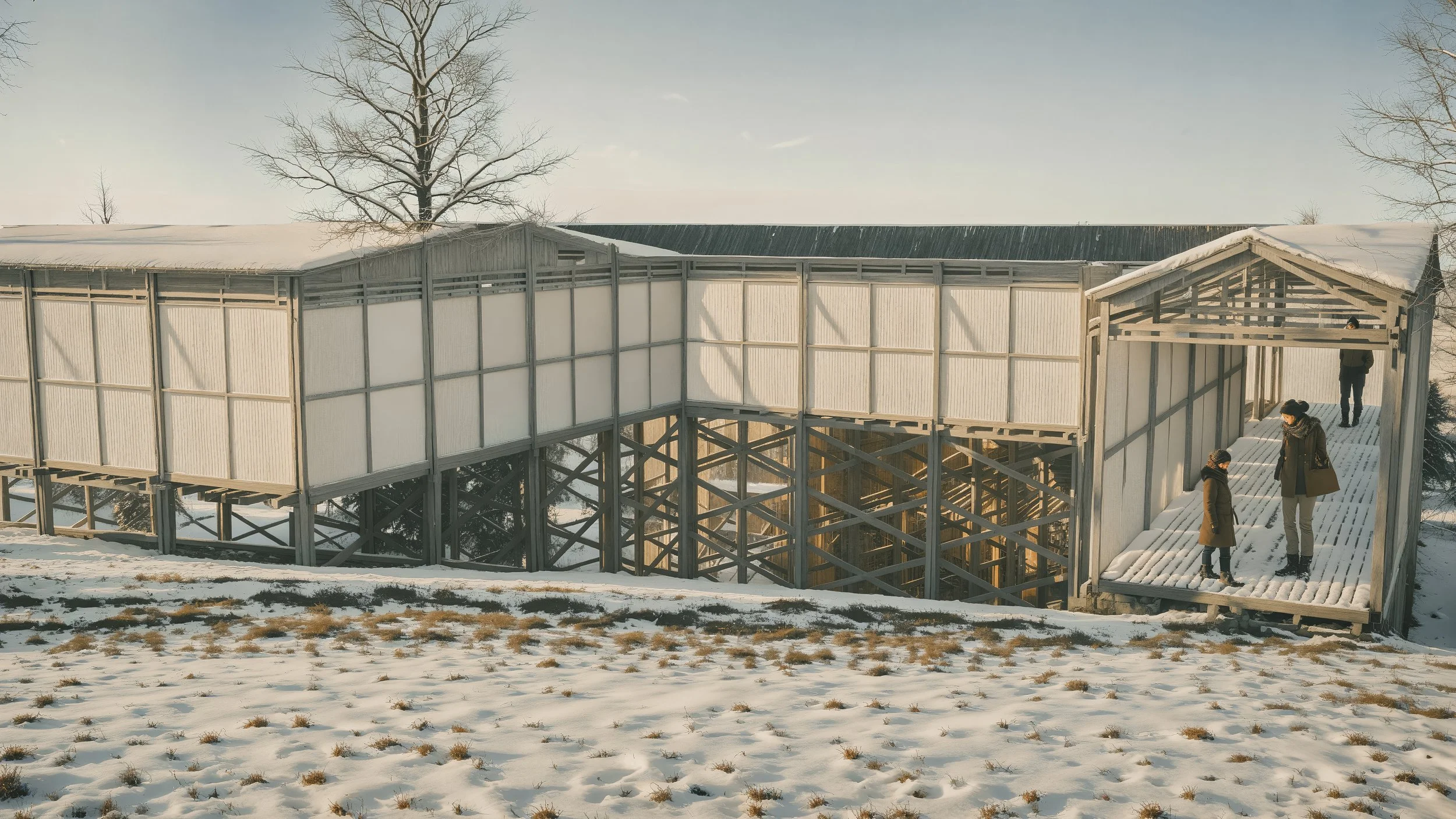

When column lengths exceed a certain threshold, interlocking diagonal wood braces are added to counteract buckling risks and maintain structural integrity, ensuring the module remains sturdy even in extreme conditions. In the third image, the module is deployed near a waterfront, where its open skeletal framework eliminates the need for walls, allowing it to function as a dock.
The repetitive nature of the system allows for seamless expansion, enabling it to serve multiple functions depending on user needs and site conditions. Whether perched on rocky terrain, elevated on a slope, or extending over water, the Kit for a Bit module proves its versatility as a relocatable and reconfigurable recreational facility.
